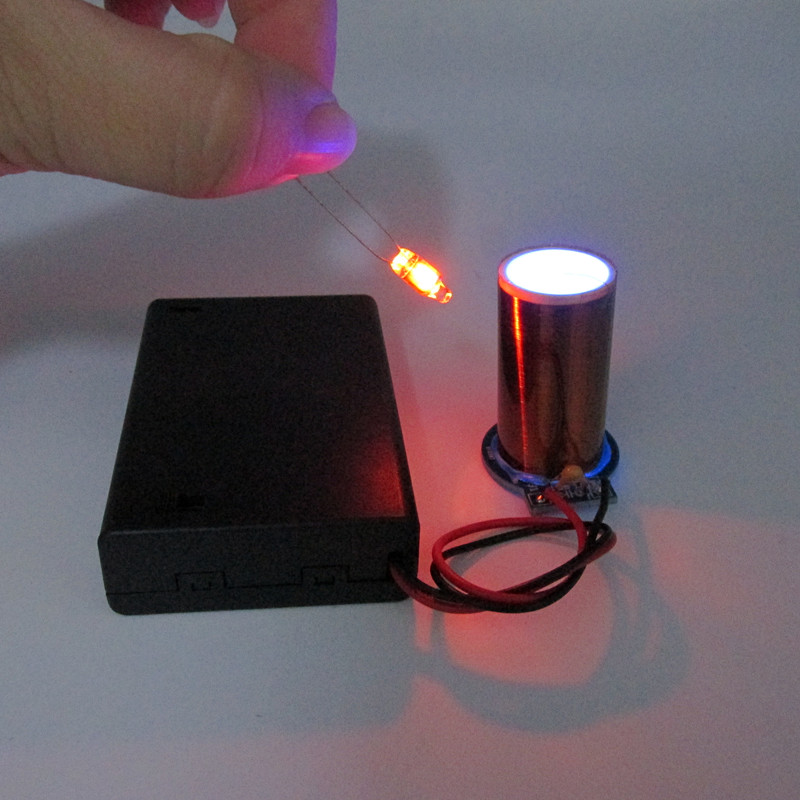

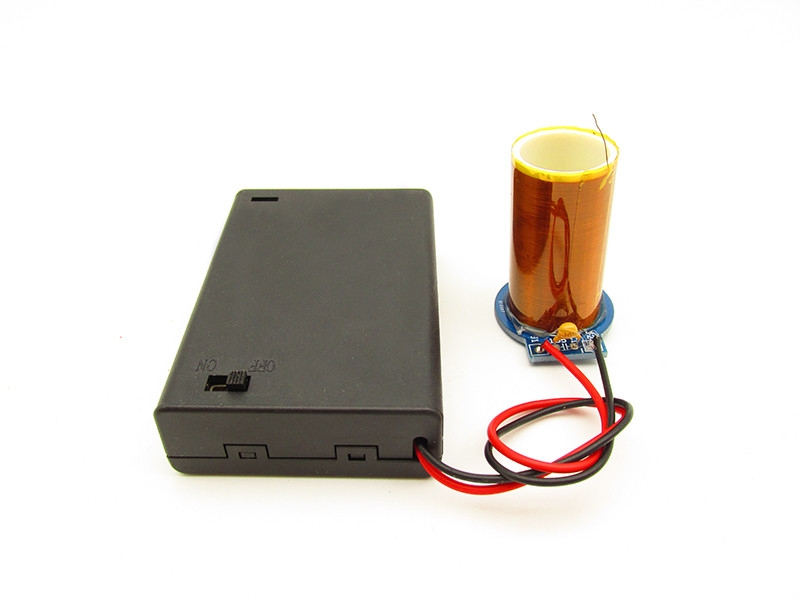

Tesla coil, diy kit, battery-powered, arc-free mini DIY compartment light
All devices are in-line, no device is patched, and there are few devices with high success rates for beginners.
Component name quantity
PCB board 1
Secondary coil 1
5th and 3 battery packs 1
105 monolithic capacitor 1
8050 triode 1
20K resistor 1
3MM LED white hair blue 1
Secondary coil parameters:
Enameled wire diameter: 0.13 mm (paint 0.15 mm)
Skeleton material: PVC pipe
Skeleton outer diameter: 2 cm
Skeleton height: 4 cm or so
Number of turns: 200 laps
Winding direction: clockwise from bottom to top
The Tesla coil is a special high-voltage device. The manufacture and operation of the Tesla coil may result in personal injury or property damage, and the consequences are not related to the designer or vendor of the device.
Precautions for use and safety warnings:
l Please pay attention to the safety of electricity. The Tesla coil will generate extremely high voltage and high frequency arc. Do not touch the output arc of the Tesla coil. Once you touch the arc, you may be burned. In the worst case, you Will be exposed to a potentially life-threatening electric shock!
l The drive board in power-on operation is also dangerous. There are capacitors with very large mounting capacity on the drive board! Therefore, the driver board after power-on is prohibited from direct contact! When the driver board is powered off, it is recommended to cut off the power supply, wait for the output arc of the Tesla coil to disappear, then cut off the drive power, and leave the driver board for at least 5 minutes. This is to ensure the charge stored in the storage capacitor. Can be safely released! It is forbidden to manually discharge the charge, which will damage the energy storage capacitor!
l Users under the age of 18 are required to use it under the supervision of an experienced adult!
l When a Tesla coil is in operation, it generates a strong magnetic field and a strong electric field. It generates induced currents on the surrounding metal objects, including wires, cables, and nearby electronic equipment, and generates strong electromagnetic radiation! Therefore, it is forbidden to use Tesla coils if there are implanted/non-implanted electronic medical device carriers around! It is forbidden to use a pacemaker! If you have a pacemaker, please stay away from the device!
l Tesla coil output arc noise is very large, it is recommended that you prepare earplugs to protect the eardrum!
l The high temperature and high pressure arc of the Tesla coil will cause the gas in the air to form other compounds, including ozone and nitrogen oxides. You will smell this when the Tesla coil is working, so please keep the Tesla coil. The working environment is well ventilated to prevent the accumulation of irritating odors such as ozone and nitrogen oxides!
l The high temperature arc of the Tesla coil can ignite flammable items, including solids, liquids, gases, etc., so it is forbidden to place flammable and explosive materials around the working environment of the Tesla coil, and place relevant fire extinguishing facilities in the workplace!
l When the Tesla coil is working, the power components, heat sinks, etc. will generate heat. It must be ensured that the cooling fan is in working condition during the whole working process for a long time! Excessive operating temperatures will burn the drive board!
l After the Tesla coil is energized, please do not touch the secondary coil directly. There will be a certain induced voltage in the secondary coil. Do not disconnect the grounding wire directly, at least for 30 minutes, waiting for the charge to be naturally released!
