BMS 14S 30A/40A/60A Active Smart BMS 48V New Lithiu Ion With Android Bluetooth APP External UART Software Monitor
Note: this BMS with balance function. your battery need matching, battery should have good consistency, if not sure, please use new brand battery.
UART/RS485 to USB module or Bluetooth should use together with the board.
UART/RS485 to USB module connect to PC by USB, so you can monitor the board, and set the parameter.
Bluetooth module can connect to smart phone, right now only support android 4.3 above.
APP support english, If need software installation vedio, please feel free to ask us!
1. Battery assembly notice before BMS installation:
Each cell must match well before BM installation (Battery internal resistance differences within 5 Milliohm, voltage within 0.03 V , capacity vary within 50 mAh). Lfepo4 cell, voltage between 2.6V~3.5V,Li-ion cell, voltage between 3~4V.
If the cells are full charged,please discharge them to the standard voltage range.Cell first parallel then series.

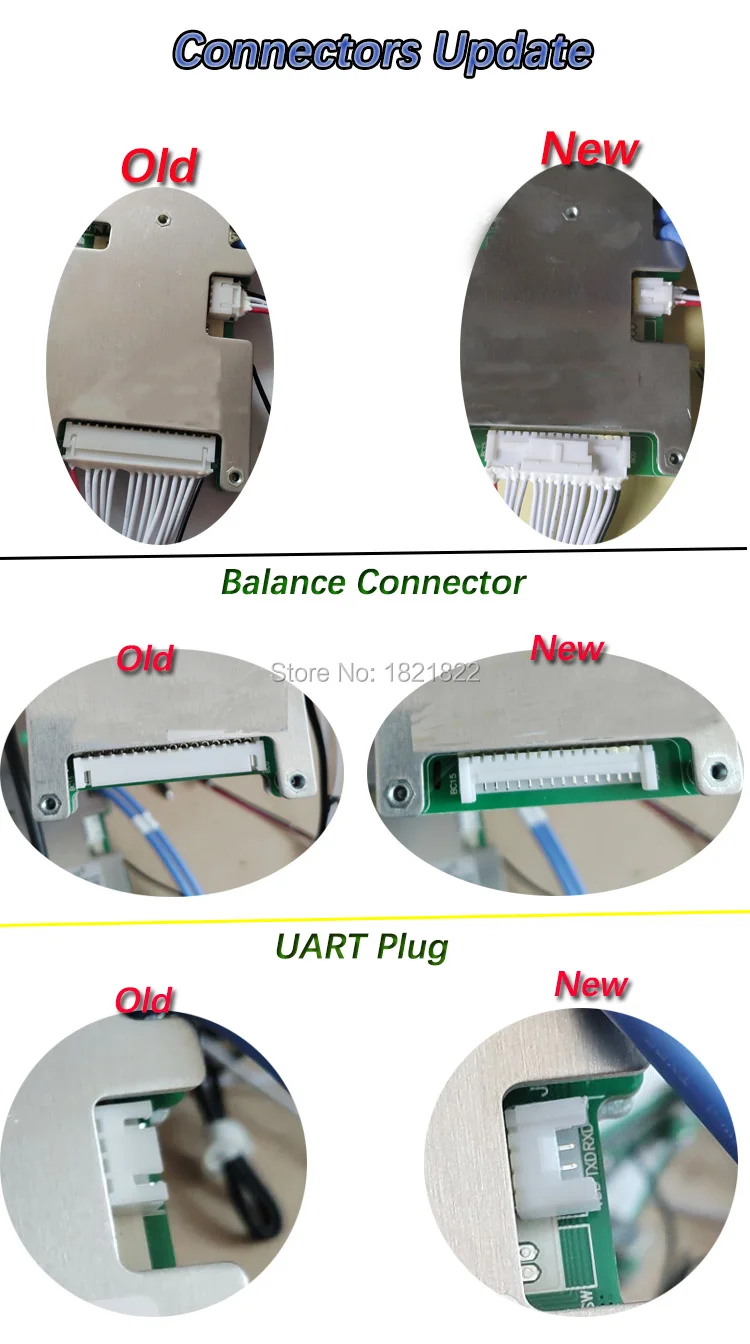

2. Connection instruction of BMS wires:
(a) Connect B- big short wire to battery general negative end( B-and Discharge port with multi-holes, you can use one large wire to connect one hole or several middle wires to connect each hole.)
(b) Connect signal/Balance wires: remove the balance wires from BMS before you assembly. Start from B-, first wire connect to B-,the second balance B1 wire connect to the first cell positive, B2 connect to second cell positive,balance wires soldering should be according to the order of B-,B1,B2,B3....B14
(c) Make sure all of the wires correct before you plug the connector into BMS：use multi meter to test each neighbouring series voltage ,if not, the BMS will burn.( Li-ion voltage less then 4V,Lifepo4 voltage less than 3.5V)
(d) Test the battery general negative voltage between battery general positive whether equal the total voltage.
Type: Voltage Regulator
Model Number: PCM-14S6060LIST140
Application: 3.7v li-ion battery
Operating Temperature: -40-85
Supply Voltage: 58.8v
Dissipation Power: 50
