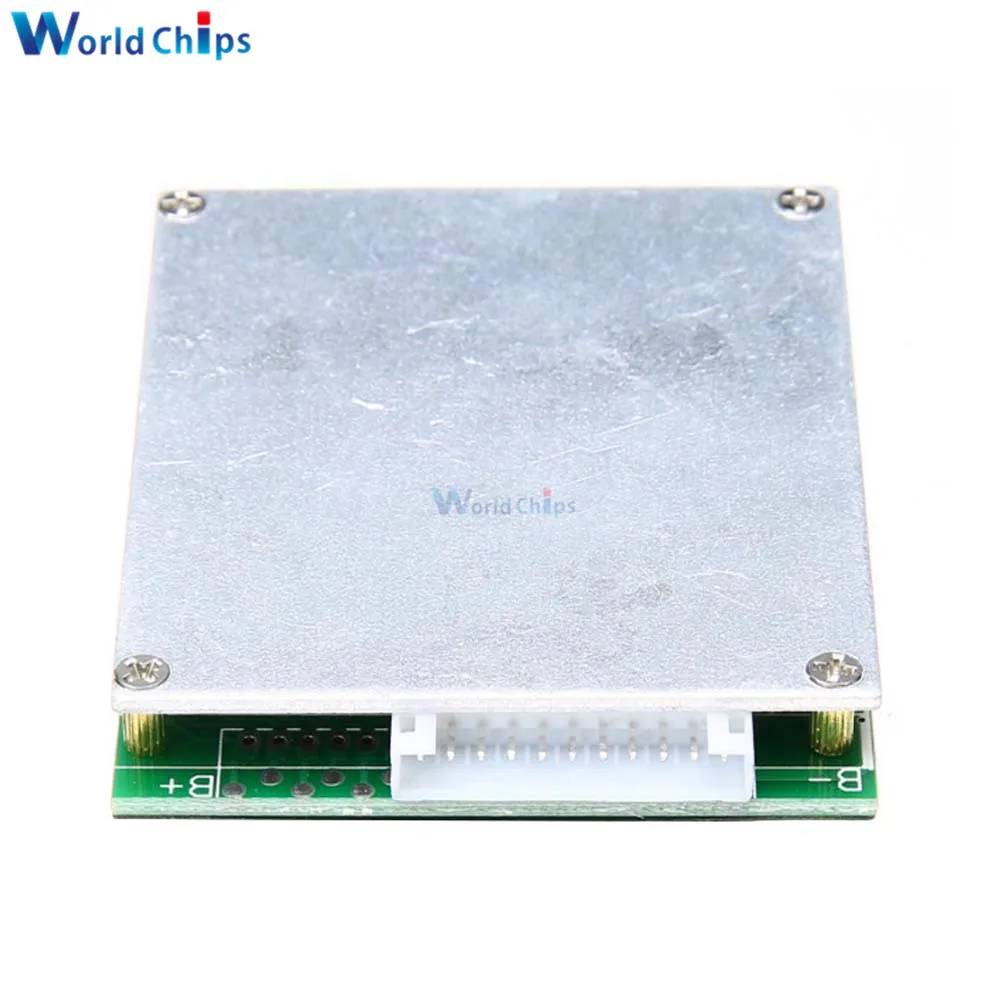

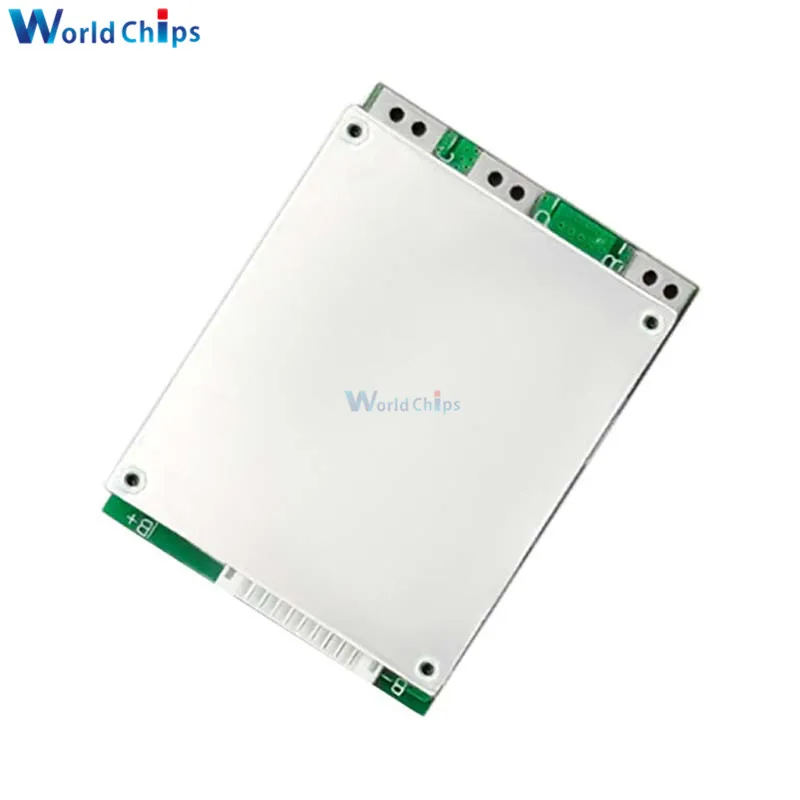

BMS 10S 36V 35A Li-Ion Lipolymer Battery Protection Board Separate Port BMS PCB with Balance for E-Bike Electric Scooter

BMS 10S 36V 35A Li-Ion Lipolymer Battery Protection Board Separate Port BMS PCB with Balance for E-Bike Electric Scooter

Regular price $12.99 Sale price $23.99 Unit price per
Tax included. Shipping calculated at checkout.

BMS 10S 36V 35A Li-Ion Lipolymer Battery Protection Board Separate Port BMS PCB with Balance for E-Bike Electric Scooter


Specification:
Discharge current: 35A
Internal resistance: ≤15mR
Charging current (Separate port): ≤5A
Charging voltage: 42V
Size: 69*51.5*10mm

Balance voltage
Detection voltage: 4.2±0.025V
Balance current: 45±5mA

Overcharge protection
Detection voltage: 4.28±0.25V
Detection delay: 100ms
Release voltage: 4.08±0.05V

Overvoltage protection
Detection voltage: 2.55±0.08V
Detection delay: 50ms
Release voltage: 3.0±0.1V

Overcurrent protection
Detection delay: 15ms
Release condition: disconnect the load
Current protection: 120±20A

Short circuit protection
Trigger condition: short circuit of external load
Detection delay: 200uS
Release condition: disconnect the load

Package:
1 x BMS 10S 36V 35A Li-Ion Lipolymer Battery Protection Board
PICTURES
563未标题-124
RELATE
                                                  Catalogue




Module     Adapter      Motor     Step Up Module      Step Down Module



                 LCD     Display    Switch     USB/LCD/LED Meter     LED


Condition: New
Type: Voltage Regulator
Model Number: BMS 10S 36V 35A
Application: E-Bike Electric Scooter
Operating Temperature: BMS 10S 36V 35A
Supply Voltage: BMS 10S 36V 35A
Dissipation Power: BMS 10S 36V 35A
Package: SOP
is_customized: Yes
