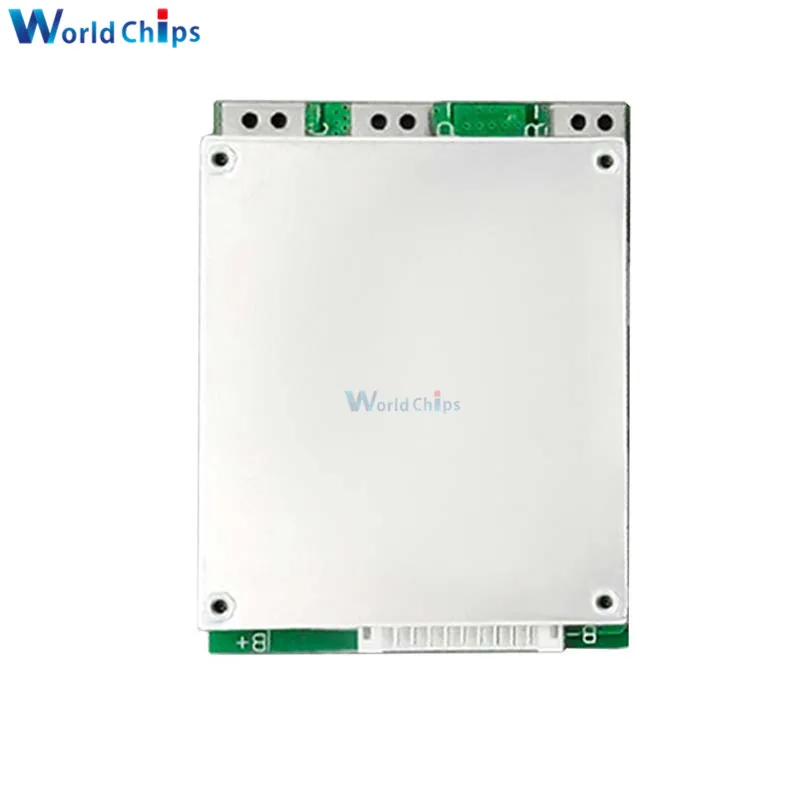

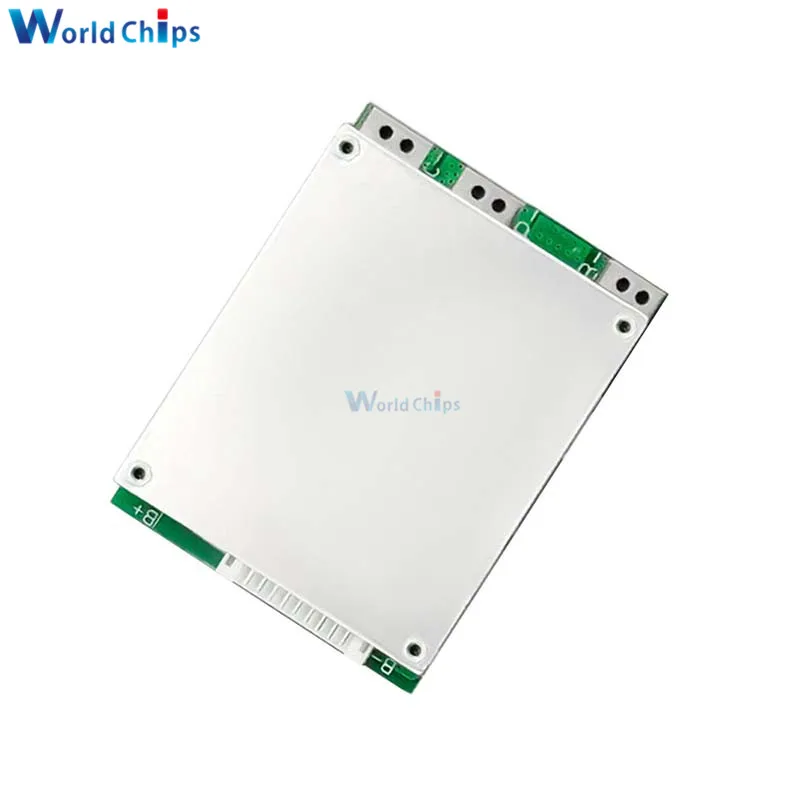

BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle
BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle
BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle
BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle
BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle

BMS 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle

Regular price $7.99 Sale price $23.99 Unit price per
Tax included. Shipping calculated at checkout.

diymore 10S 36V 15A 20A 35A Lithium Battery Protection Board PCB Li-ion BMS Battery Balancer PCM Suit For Ebike Electric Bicycle

10S 36V 15A Specification: 10 string 36V 37V 42V lithium battery power protection board Overcharge, over discharge, over current and short circuit protection Same port 16A discharge current With heat sink and 300mm cable Size: approx. 63 x 32 x 10mm Package Included: 1x 10S 36V 37V 16A Li-ion Lithium Battery BMS PCB PCM Suitable For Ebike Electric Bicycle Note: Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully. Please allow 1-5mm deviation due to manual measurement. Due to light and screen difference, the item's color may be slightly different from the pictures.

BMS 10S 36V 20A

Specification: Internal resistance: ≤15mR Charging current: Common Port 20A Discharge current: Common Port 20A Charging voltage: 42V Size: 69*51.5*10mm Balance voltage Detection voltage: 4.2±0.025V Balance current: 45±5mA Overcharge protection Detection voltage: 4.25±0.025V Detection delay: 100ms Release voltage: 4.15±0.015V Over discharge voltage protection Detection voltage: 2.8±0.08V Detection delay: 50ms Release voltage: 3.0±0.1V Over discharge current protection Detection delay: 15ms Release condition: disconnect the load Protection current: 120V±20A Short circuit protection Trigger condition: short circuit of external load Detection delay: 200ms Release condition: disconnect the load Package: 1 x BMS 10S 36V 20A Li-ion Lithium Battery Charge Protection Board

BMS 10S 36V 35A

Specification: Discharge current: 35A Internal resistance: ≤15mR Charging current (Separate port): ≤5A Charging voltage: 42V Size: 69*51.5*10mm Balance voltage Detection voltage: 4.2±0.025V Balance current: 45±5mA Overcharge protection Detection voltage: 4.28±0.25V Detection delay: 100ms Release voltage: 4.08±0.05V Overvoltage protection Detection voltage: 2.55±0.08V Detection delay: 50ms Release voltage: 3.0±0.1V Overcurrent protection Detection delay: 15ms Release condition: disconnect the load Current protection: 120±20A Short circuit protection Trigger condition: short circuit of external load Detection delay: 200uS Release condition: disconnect the load Package: 1 x BMS 10S 36V 35A Li-Ion Lipolymer Battery Protection Board


Condition: New
Type: Voltage Regulator
Model Number: BMS 10S 36V 15A 20A 35A
Application: Ebike Electric Bicycle
Operating Temperature: standard
Supply Voltage: 36V 37V
Dissipation Power: standard
Package: SOP
is_customized: Yes
