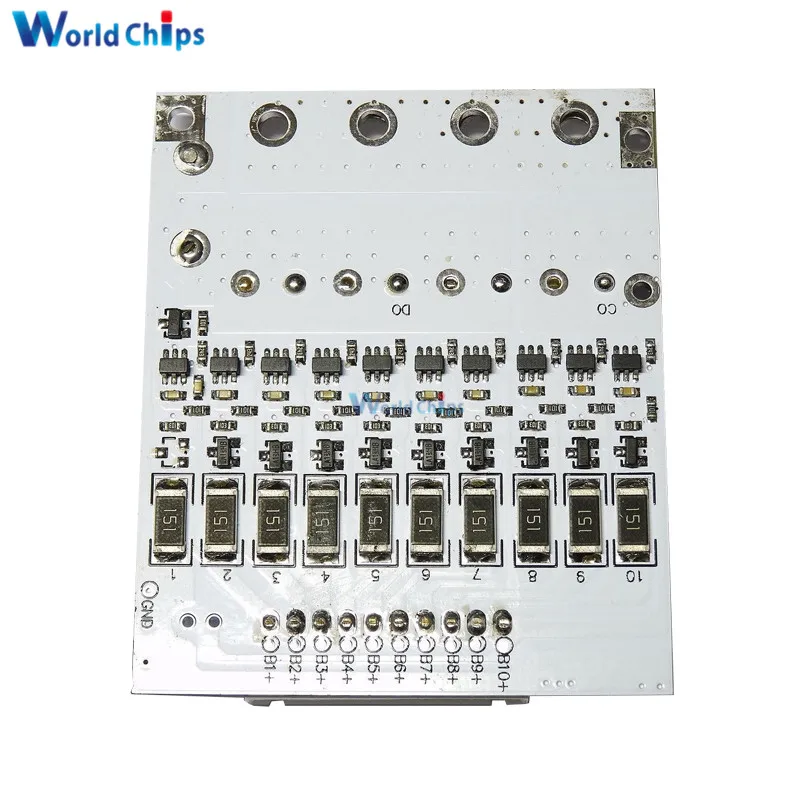

Battery Protection BMS PCB Board For 10 Packs 10S 36V Li-ion Lithium Cell Max 40A With Balance 53X63MM Electronic Circuit Board

Battery Protection BMS PCB Board For 10 Packs 10S 36V Li-ion Lithium Cell Max 40A With Balance 53X63MM Electronic Circuit Board

Regular price $16.99 Sale price $25.99 Unit price per
Tax included. Shipping calculated at checkout.

Features:



Dimensions : 53 * 63MM
Applicable : 36 V10 series lithium battery protection board
Type of batteries : lithium cobalt / manganese lithium / ternary materials
Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V / / 0.05V per upgrade )
Single overcharge recovery voltage :4.10-4 .00 V
Single Over-discharge protection voltage : 2.50V ± 0.1V (2.50-3.0V / / every .05 V into the class )
Single Over-discharge recovery voltage : 2.80V ± 0.1V
Protection Current consumption : ≤ 300UA
Short circuit protection current : 40A ± 3A
Short circuit protection time : 500MS
Temperature protection : 55 / 65 / 75 degrees
Discharge Current : 30A
The maximum instantaneous current : 40A
Single balanced voltage : 4.19V ± 0.02V
Single balanced current : ≤ 55MA
Charging current : ≤ 10A


Package include :


1 x balancing Lithium L-ion Protection PCB
1 x cable



HTB1el5CdlfM8KJjSZFOq6xr5XXat

5123


Condition: New
Type: Voltage Regulator
Dissipation Power: standard
Model Number: Battery Protection BMS PCB Board
Application: Computer
Operating Temperature: standard
Supply Voltage: 36V
Package: Other
is_customized: Yes
match 1: 53 * 63MM
match 2: 30A
match 3: Battery Protection BMS PCB Board
match 4: 55 / 65 / 75 degrees
