lithium Li-ion LiFePO4 Battery PCB
lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth
lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth
lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth
lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth
lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth

lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth

Regular price $102.99 Sale price $318.99 Unit price per
Tax included. Shipping calculated at checkout.

Product Description :

80A 100A 320A 300A 400A 7S-16S 17-20S lithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth 10S 12S 13S 14S 18S 19S

Features:

  $_10YM0164
Temperature sensor wiring instructions:
The 3P temperature cable is plugged into the protection board, and the public line is near the edge of the protection board.
The middle one is the T1 temperature line, and the one near the test line socket is the T2 temperature line.

Product introduction:
Charging current: 50A
Banlance current: 100MA
Wiring method: same port
Size: length 14CM width 7CM thickness 1.7CM
Single cell voltage: detection range 1V-4.6V, accuracy less than 5Mv
Overcharged and paid: protected
Working voltage: 15~80V
Short circuit protection: short circuit protection current can be set
Bluetooth connection: for Android android hand sail
Applicable battery: 7-16 string Li-ion Battery; 8-16 string Lifepo4 Battery;8-16S Titanium lithium
Coulomb counter: accurate calculation based on current versus time
Battery remaining capacity, error range is less than 5%
Power consumption: 3MA at work
1.5MA during standby

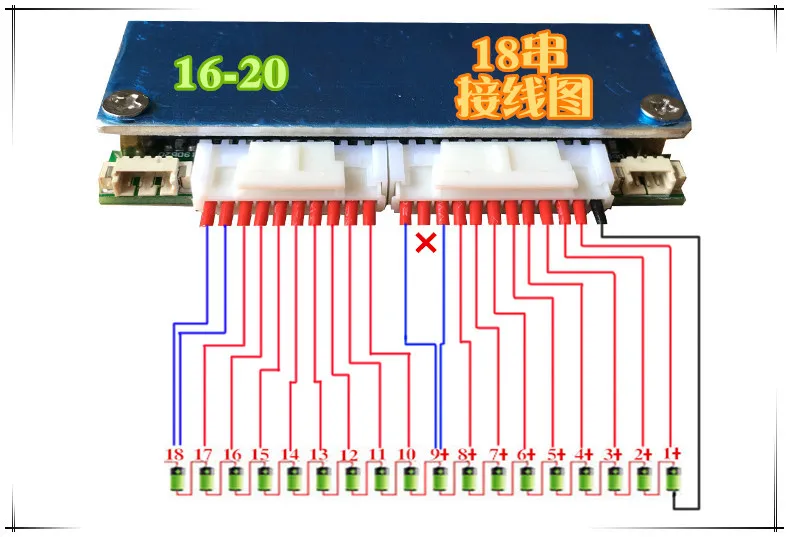

The wiring diagram:
YM064-2$_a
7891011121314

151616-20S-316-20S-216-20S-116-20s


Package Contents
100% Brand New
1 Xlithium Li-ion LiFePO4 Battery PCB BMS Protection Board Bluetooth

Operating Temperature: stamdard
Supply Voltage: v
Condition: New
Type: Voltage Regulator
is_customized: Yes
Dissipation Power: w
Model Number: OEM
Current: A
Voltage: V
Power: W
Capacity: AH
Usage: Laptop
