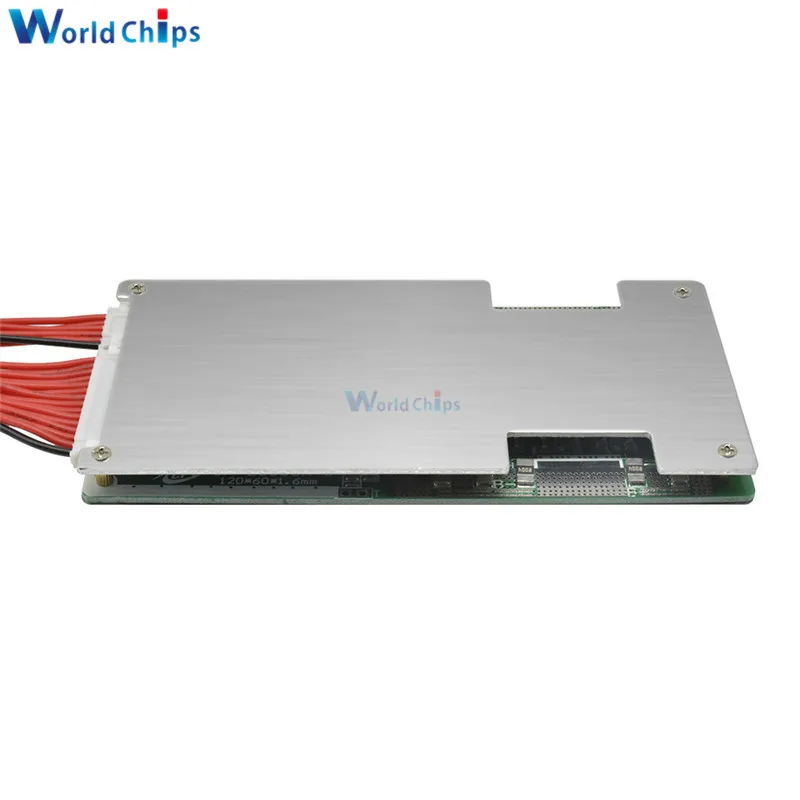

72V 20S 45A Lithium Li-Ion 18650 Battery Bms PCB Board With Protection Balance Board Module 20String LiFePo4 batteries Board

72V 20S 45A Lithium Li-Ion 18650 Battery Bms PCB Board With Protection Balance Board Module 20String LiFePo4 batteries Board

Regular price $27.99 Sale price $49.99 Unit price per
Tax included. Shipping calculated at checkout.
DESCRIPTION
With a balanced,same port 45A discharge.

Protection board with overcharge protection,over discharge protection,over current protection,short circuit protection,temperature protection.
When we connect BMS with cells or disassemble BMS from battery pack,the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance,all the battery must be matched well(Each battery voltage less than equal 0.05V,IR less than equal 15 mΩ,capacity less than equal 30mAh)to make sure the better consistency of the battery.
Order of connection:Connect charging/discharging wire ,battery pack negative wire,After confirm the wires are connected OK,plug the connector cable in the BMS
Color:Silver +Green
Material:metal +PCB


Package Contents:

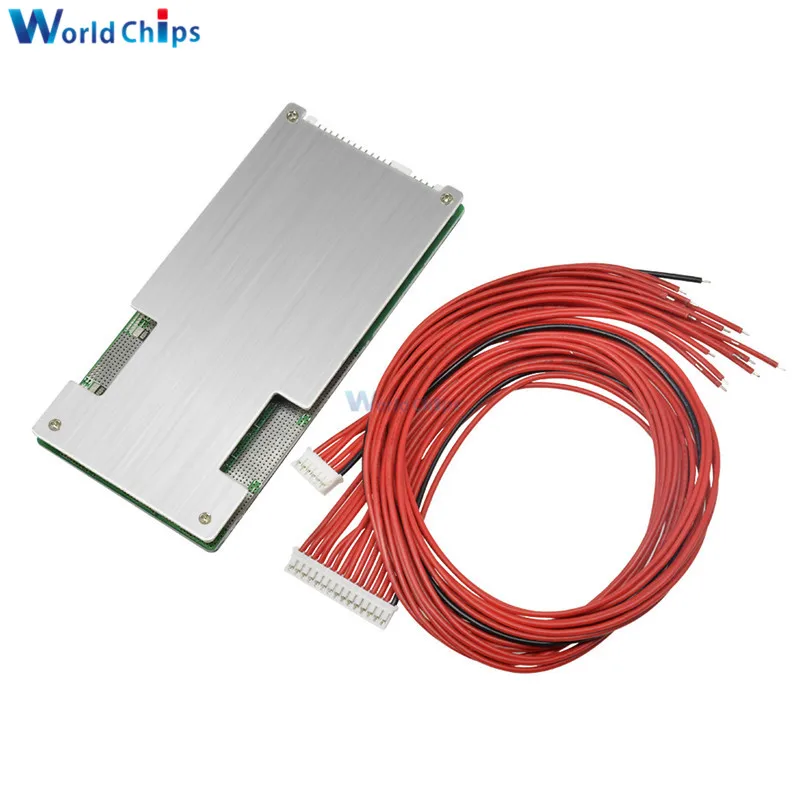

1 x 20S 45A Lithium Battery Protection Board
1 set x Cable

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
PICTURES


Condition: New
Type: Voltage Regulator
Model Number: 72V 20S 45A
Application: Computer
Operating Temperature: as the description
Supply Voltage: 72V
Dissipation Power: as the description
Package: TQFP
is_customized: Yes
