4S 20A LiFePo4 LiFe Battery Packs BMS Protection PCB Board 4 Cells 12.8V 14.4V
Product Description :
4S 20A LiFePo4 LiFe Battery Packs BMS Protection PCB Board 4 Cells 12.8V 14.4V 65X32X4mm Board Module

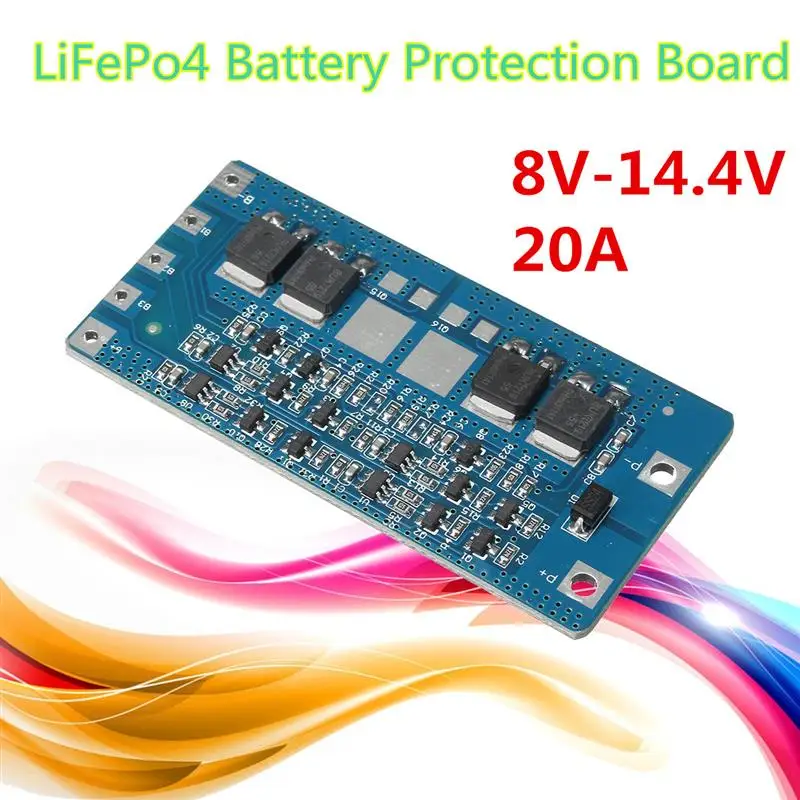

Name:LiFePo4 Battery Protection Board
-Product over discharge protection voltage 8V, filled with 14.4V.
-To avoid overcharge and over discharge, to maintain the basic balance of the monomer.
-The protection board circuit can detect the voltage and current of each battery in the series battery pack respectively,
and control the charging and discharging process of the battery pack.
Battery voltage in each battery are in the overcharge detection voltage and over discharge detection voltage between,
and the output without short circuit phenomenon, the MOS tube conduction, P +, P-output battery voltage,
allows the battery pack to perform charge and discharge operations.
-Protection board also has a battery over-discharge protection, overcharge protection, overcurrent protection,
short circuit protection and other functions.
1 x LiFePo4 Battery Protection Board
Supply Voltage: 8V-14.4V
Dissipation Power: 20A
Brand Name: TMOEC
Model Number: 578762
Operating Temperature: other
