Product Description :
4 Solts Smart LCD Battery Charger for Li-ion / IMR/LiFePO4 26650 18650 17500 16340(CR123A) and Ni-MH/Cd AA, AAA, A, SC, C size
Compatible for Batteries:
- Li-ion / IMR/LiFePO4: 26650,20700,18650, 18490, 17700, 17500, 16340(RCR123), 14500, 10440
- Ni-MH/Cd: AA, AAA, A, SC, C size
Features:
① Max 2A charging current: The ranges of adjustable current are 0.5A, 1A, 2A. It can be switched to 2A when only one battery is charged; when two batteries are charged at the same time, it can only be switched to 1A. Ni-MH/Ni-Cd battery default 0.5A.
② When no battery is inserted or defective battery is inserted, the charger will have no any response showing “null” ; When the battery is fully charged, it shows “Full”

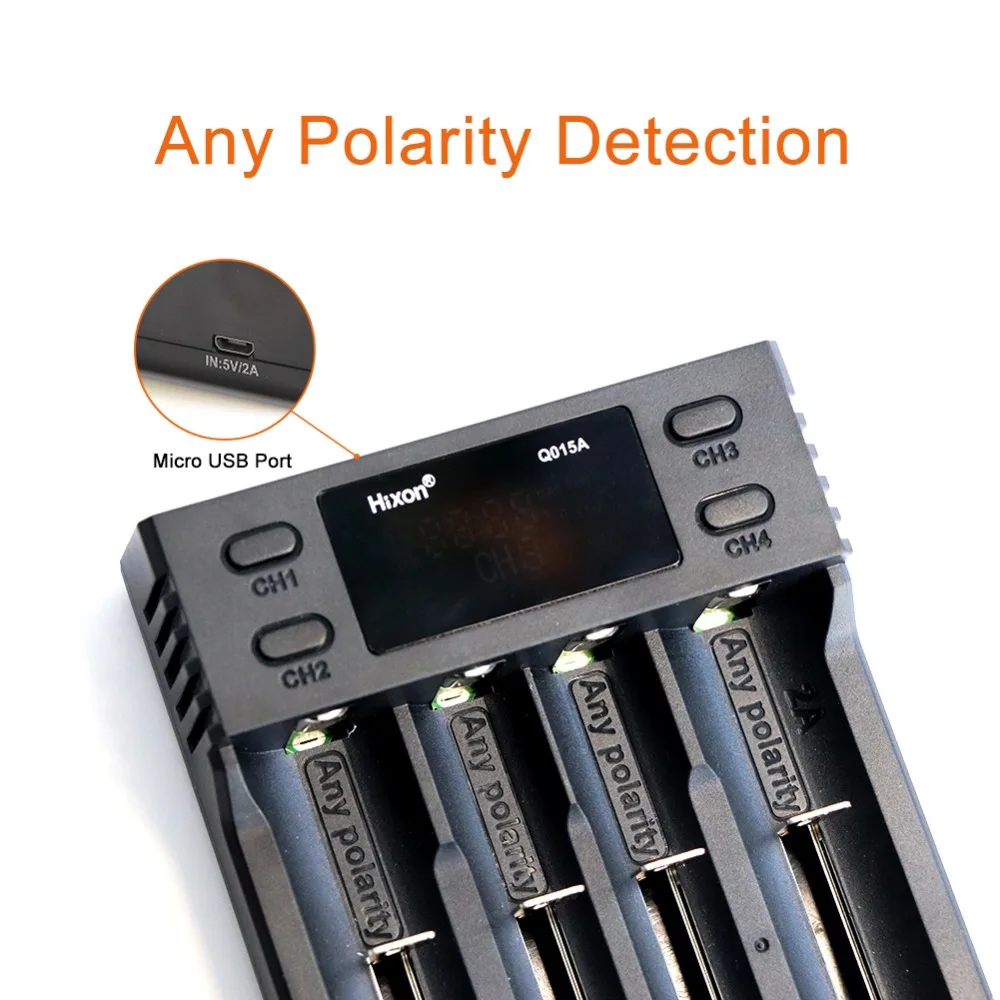

③ This charger is designed for portable, flexible and multi types of battery. It can detect the battery polarity, battery type and charge the battery automatically under your selected charging current. Built-in digital tube indicator to display the charging real-time status
4 Solts Smart LCD Battery Charger for Li-ion / IMR/LiFePO4 26650 18650 17500 16340(CR123A) and Ni-MH/Cd AA, AAA, A, SC, C size
Specifications:
Input: Micro USB DC 5V/2A(min.)
Output voltage:
- DC 4.2V 2A*1pc; 1A*2pcs; 0.5A*4pcs for Li-Ion
- DC 4.35V 2A*1pc; 1A*2pcs; 0.5A*4pcs for IMR
- DC 3.65V 2A*1pc; 1A*2pcs; 0.5A*4pcs for LeFePO4
- DC 1.48V 500mA for NiMH/NI-Cd
Constant voltage charging with cut-off current less then 100mA
Standby current: No more than 15mA








Size(mm)/Weight(grams):
Length 118mm x Width 100mm x Height 30mm
136.4 grams (charger) not included USB cable
Package Contents:
1* 4-slot battery charger(no batteries include);
1* Micro USB cable;
1* user manual;
Please note:
* Use only DC adapter with output 5V min.2A;
* Built-in digital tube indicator shows the real-time charging status of voltage, current, time and capacity;
* Identify Li-Ion and Ni-MH battery automatically;
* Select manually by short-press the mode button for IMR battery(3.85V Li-ion )and LiFePO4 battery(3.2V) ;
* Activation function for 0V battery of PCM protection;
* Can not charge battery with 0.0≤U<0.2V for NiMH/Cd and 1.6≤U<2.2V for Li-Ion;

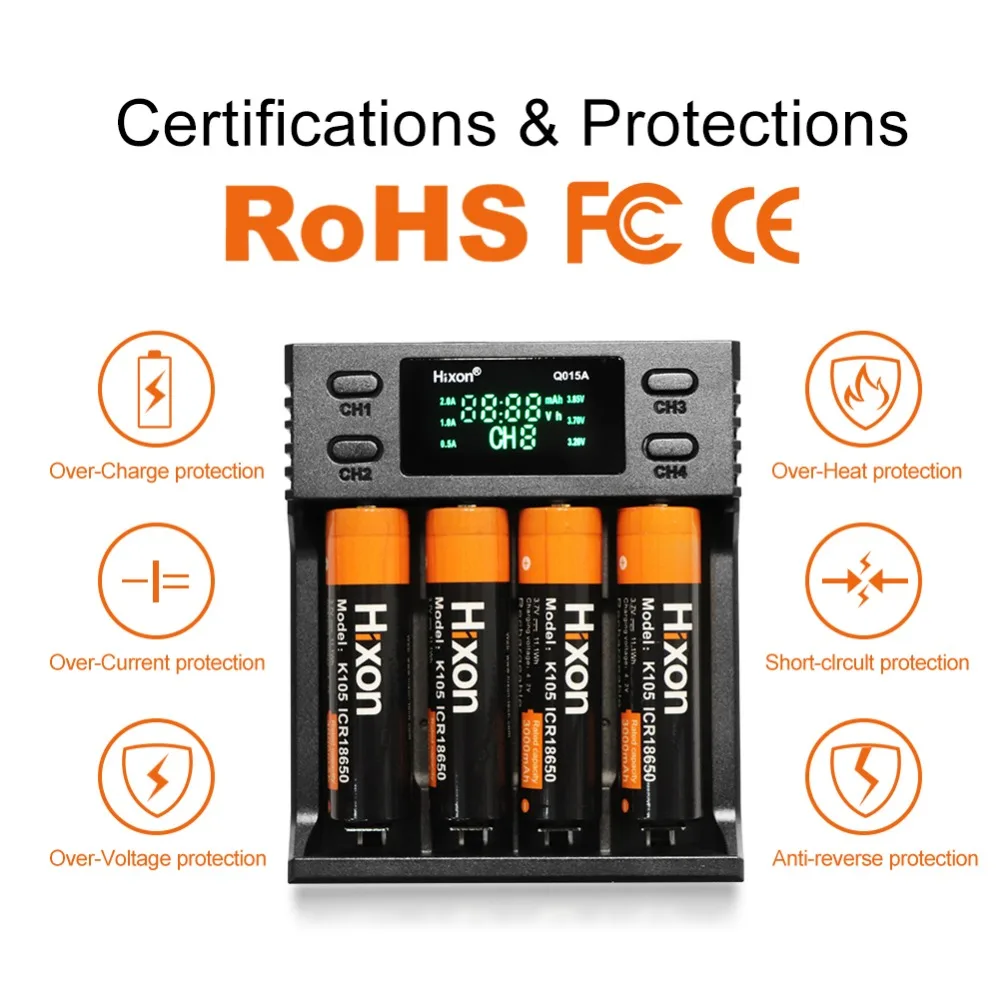

* Over-charging and over-discharge protection;
* Identify broken/defective battery;
* Charging under constant voltage and current;
Type: Electric
Type: USB
Quick charge: Yes
Intelligent Charge: Yes
Display screen: Yes
Model Number: Q015A
Package: Yes
Output Interface: USB Output
Brand Name: Hixon
Use: Li-ion / IMR/LiFePO4/Ni-MH/Cd
charge for: Li-ion / IMR/LiFePO4/Ni-MH/Cd battery
Input: Micro USB DC 5V/2A(min.)
Output voltage: DC4.2V/2A; DC4.35V/2A; DC3.65V/2A; DC1.48V/0.5A
Li-ion / IMR/LiFePO4: 26650,20700,18650, 18490, 17700, 17500, 16340(RCR123), 14500, 10440
Ni-MH/Cd: AA, AAA, A, SC, C size
color: black
certification: CE, FCC, Rohs
slot: 4 slots
Constant voltage charging: with cut-off current less then 100mA
Standby current: No more than 15mA
