3S 25A Li-ion 18650 BMS PCM battery protection board bms pcm with balance for li-ion lipo battery cell pack

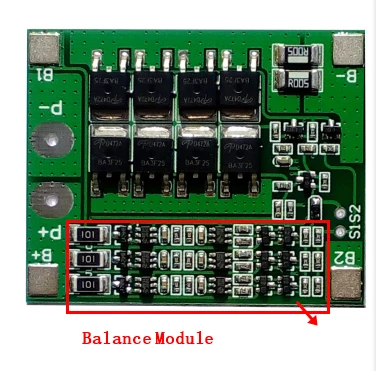

Balancer is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
3S BMS Cnnection instruction:
Type: BMS PCM battery
Supply Voltage: BMS PCM battery
Package: BMS PCM battery
Dissipation Power: BMS PCM battery
Model Number: BMS PCM battery
Application: BMS PCM battery
Operating Temperature: BMS PCM battery
