3.6V/3.7V cell 10S 36V 10A/15A BMS Used for 36v 10ah 12ah 15ah battery 15A continuous 50A peak discharge With balance function

3.6V/3.7V cell 10S 36V 10A/15A BMS Used for 36v 10ah 12ah 15ah battery 15A continuous 50A peak discharge With balance function

Regular price $25.99 Sale price $46.99 Unit price per
Tax included. Shipping calculated at checkout.

Brand Name: ANNBATTERY                                                   Weight: 0.1Kg

Size: L70*W51.5*11mm                                                          Model Number: 10M15A

Nominal Capacity: for 5-20Ah battery                                 Application: 10S 36V li-ion battery

Type: Lithium battery protection circuit                             Voltage: 36V

Working Current: 15A                                                             Balanced Current: 40mA

Number in series: 10S                                                            Nominal Voltage: 36V

Free Shipping! 36v BMS / PCM, 10S 36v 15a BMS, Multiple protection function, Used for 36v 10ah 12ah 15ah li-ion battery, 36v 10S PCM PCB. With balance function.



10M15A 04



36V 0236V 10S 15A 05

10S 36V 15A BMS.

Used for 36v 8ah, 36v 10ah, 36v 12ah, 36v 15ah, 36v 20ah lithium battery.



Feature

1. It is suitable for 10S 36V lithium battery (10S 3.7V li-ion cell).

2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection.
3. According to the customer request we can develop PCM in different sizes and structures.



 Electrical Characteristic (Ta=25 ºC)

No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage



42V



V

2

Input Charging Current



8



A

3

Output Discharging Current



15

17

A

4

Over-Current Discharging Protection

50

60

70

A

5

Current Consumption



25

32

uA

6

Balance Current

44

49

54

mA

7

Balance Voltage

4.16

4.18

4.20

V

8

Over-Charge Protection Voltage

4.21

4.25

4.3

V

9

Over-Charge Protection Voltage Delay Time

0.5

1.0

2.0

S

10

Over-Discharge Protection Voltage

2.42

2.5

2.58

V

11

Over-Discharge Protection Voltage Delay Time

0.5

1.0

2.0

mS

12

Short Circuit Protection Release

Remove the load

13

Impedance



5

15

14

Operating Temperature

-20

+25

+45

ºC

15

Storage Temperature

-20

+25

+30

ºC






10S 15A PCM 03

10S 15A PCM 05

10S 15A PCM 06

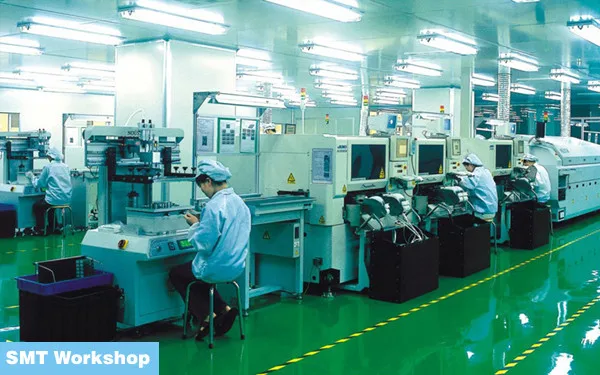

10M15A 05 10M15A 06 SMT


Weight: 0.1Kg
Size: L70*W51.5*11mm
Model Number: 10M15A
Nominal Capacity: for 5-20Ah battery
Application: 10S 36V li-ion battery
Type: Lithium battery protection circuit
Voltage: 36V
Working Current: 15A
Balanced Current: 40mA
Number in series: 10S
Nominal Voltage: 36V
Dimensions: L70*W51.5*11mm
