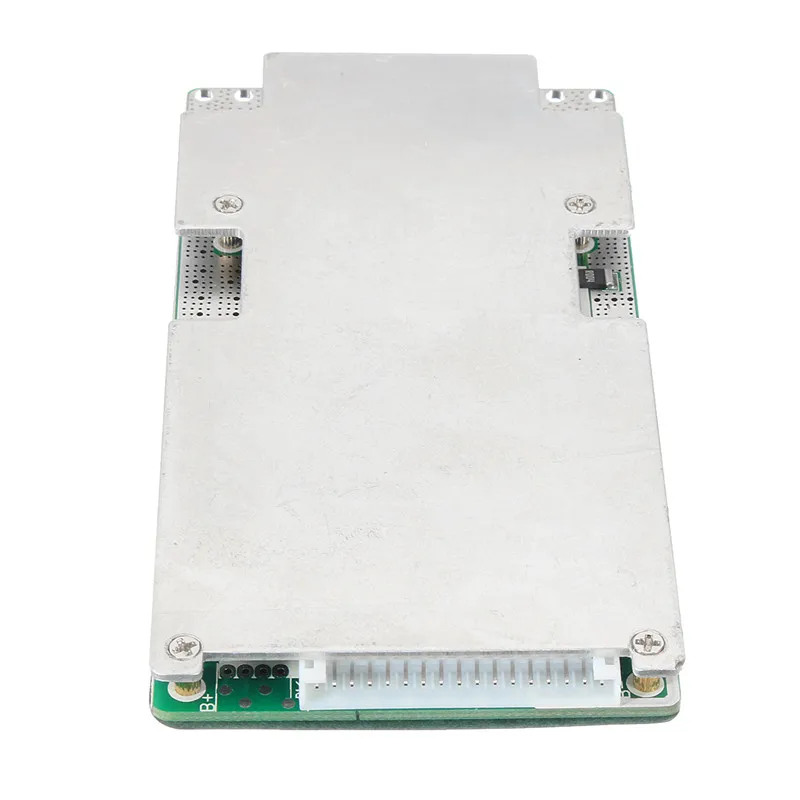

1Pcs  New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board
1Pcs  New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board
1Pcs  New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board
1Pcs  New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board
1Pcs  New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board

1Pcs New 16S 45A 48V Li-ion Lithium LiFePo4 Battery BMS LFP PCM Power Protection Board

Regular price $33.99 Sale price $62.99 Unit price per
Tax included. Shipping calculated at checkout.

Product Description :

Attention when connecting:
-When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
-In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage ≦0.05V, IR≦15 mΩ,capacity≦30mAh) to make sure the better consistency of the battery.
-Cell must be connected in parallel first, after then connected in series

Order of connection:
Step1: Connect charging /discharging wire , battery pack negative wire
Step2:After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!

Attention, ESD protection during work.

Package Included:
1x 16S 45A Lithium Battery Protection Board

Electrical parameters: (Lithium iron phosphate 3.2V battery) (16 string)Name: 16 string 48V lithium battery power protection board
Model: 780508
Specifications:

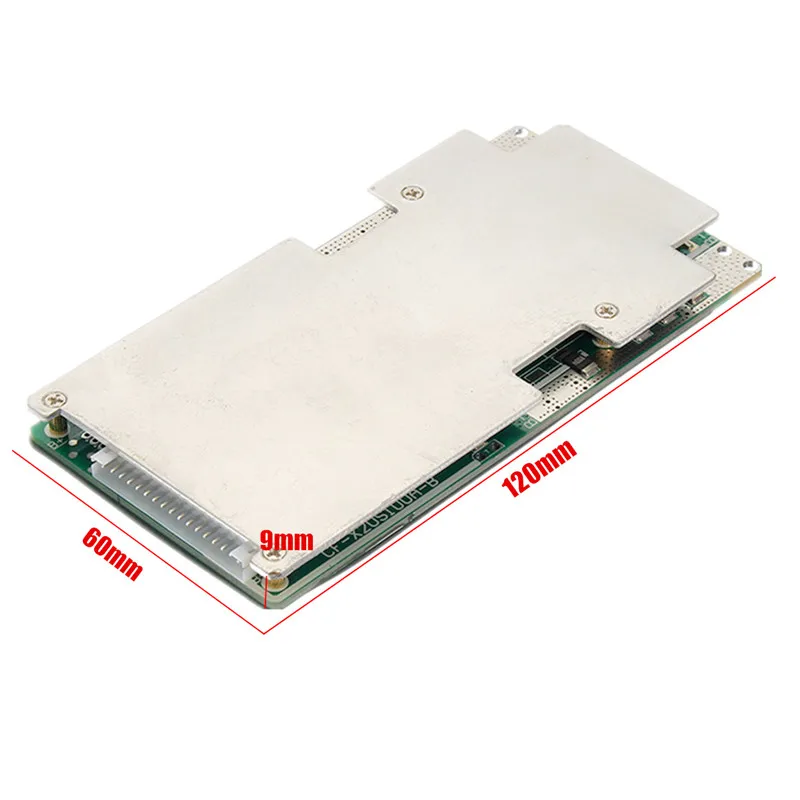

Heat sink size: 120 * 60 * 9mm
Cable length: 400mm
Electrical parameters: As shown in following table

Features:
-With a balanced, same port 45A discharge.
-Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection.

Detail

Specifications

Tipical

Unit



Discharge

Continuous

Discharging Current

45

A



Instantaneous

Discharge Current

100

A



Charge

Charging Voltage

60

V



Charging Current

45(Max)

A



Overcharge Protect

Over-charge Detect

3.75±0.025

V



Protect Delay

1000

mS



Over-charge release

3.6±0.05

V



Balance

Detect Voltage

3.6±0.025

V



Release Voltage

3.6±0.05

V



Balance Current

48±5

mA



Over-discharge Protect

Over-discharge Detect

2.1±0.05

V



Over-discharge Detect delay

100

mS



Release Voltage

2.30±0.1

V



Over-current Protect

Detect Voltage

150

mV



Detect Delay

15

mS



Current Detect

150±10

A



Release Condition

Cut Load



Short-circuit Protect

Protect Condition

Cut Load



Detect Delay

200

uS



Release Condition

Cut Load



Temperature Protect

Temperature Protect

/



Resistance

Inner

≤15



Self-Consumption

Working Current

≤70

uA



Sleep Current (when Over-discharge)

≤10

uA



Working Temperature

Range

-30/+80














Brand Name: LEORY
Type: Li-Ion
Model Number: for e-bike ebicycle scooter
Voltage: 48V
Application: for e-bike ebicycle scooter
