13S 48V 30A lithium polymer battery BMS 30A continuous 100A peak current 1000-1500W 54.6V li-ion battery BMS balance function

13S 48V 30A lithium polymer battery BMS 30A continuous 100A peak current 1000-1500W 54.6V li-ion battery BMS balance function

Regular price $35.99 Sale price $65.99 Unit price per
Tax included. Shipping calculated at checkout.

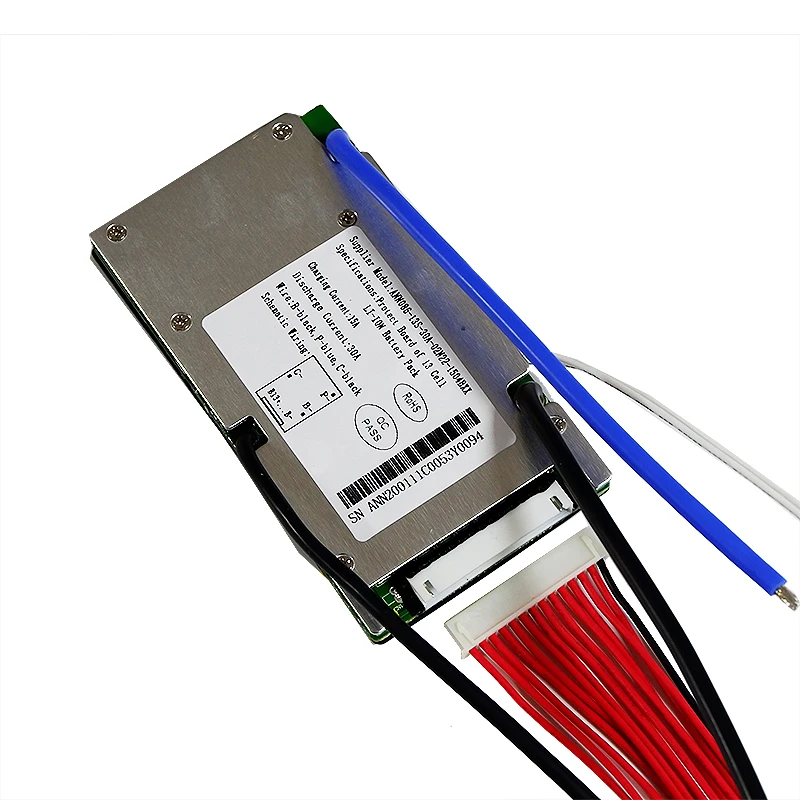

13S 48V 30A lithium polymer battery BMS, 30A continuous 100A peak current, 1000-1500W 54.6V li-ion battery BMS, with the balance function.

Feature

1. It is suitable for 13S 48V lithium ion battery pack.

2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection, voltage balance function.

3. This BMS was build with high end electronic components (High End Integrated IC chip and MOSFET ) ,It has highly precision on detection on voltage and current .stable working performance in extremely condition.

Electrical Characteristic (Ta=25 ºC)



No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage

54.4

54.6

54.8

V

2

Input Charging Current



10

15

A

3

Output Discharging Current



30



A

4

Over-Current Discharging Protection

85

100

115

A

5

Current Consumption

10

15

25

uA

6

Balance Current

45

50

55

mA

7

Balance Voltage

4.16

4.18

4.20

V

8

Over-Charge Protection Voltage

4.21

4.25

4.3

V

9

Over-Charge Protection Voltage Release

4.0

4.15

4.2

V

10

Over-Charge Protection Voltage Delay Time

1.0

1.5

2.0

S

11

Over-Discharge Protection Voltage

2.42

2.5

2.58

V

12

Over-Discharge Protection Voltage Release

2.9

3.0

3.1

V

13

Over-Discharge Protection Voltage Delay Time

1.0

1.5

2.0

S

14

Short Circuit Protection Release

Remove the load

15

Impedance



8

15

16

Operating Temperature

-15

+25

+45

ºC

17

Storage Temperature

-20

+25

+30

ºC


13M30AFK04
DSCF9858DSCF986713M30AFK0813M30AFK0913M30AFK10


Wiring instructions:

power cable

B-:Connect to battery negative  (Black cable 12AWG  L=150±5mm)

P-:Connect to negative of discharge port (Blue cable  12AWG  L=150±5mm)

C-:Connect to negative of charge port (Black cable  14AWG  L=150±5mm)



Voltage monitoring cable

cable type:UL1007   22AWG   L=300±5mm
B-(Black),B13+(Red)
B-(GND)/B1/B2/B3/B4/B5/B6/B7/B8/B9/B10/B11/B12/B13 (B+)


Remarks:

Please connect B- line firstly, and then connect voltage monitoring wiring harness. The last step is to connect charge and discharge lines. If you want to remove them, the order should be reversed. Please pay attention to the connection order, or it will damage the component.




Origin: CN(Origin)
Weight: 0.1KG
Size: L108*W60*T12mm
Model Number: 13M30AFK
Nominal Capacity: 10-50Ah
Application: li-ion battery
Type: Li-ion battery BMS
Voltage: 48V
Product name: 13S 48V 30A lithium ion battery BMS
Rated Voltage: 48V
Charging voltage: 54.6V
Continuous working current: 30A
Over-Current Discharging Protection: 100A
Maximum charging current: 15A
Balanced Current: 50mA
Charge and discharge: Different charge and discharge port
Dimensions: L108*W60*T12mm
Composed Type: 13S
