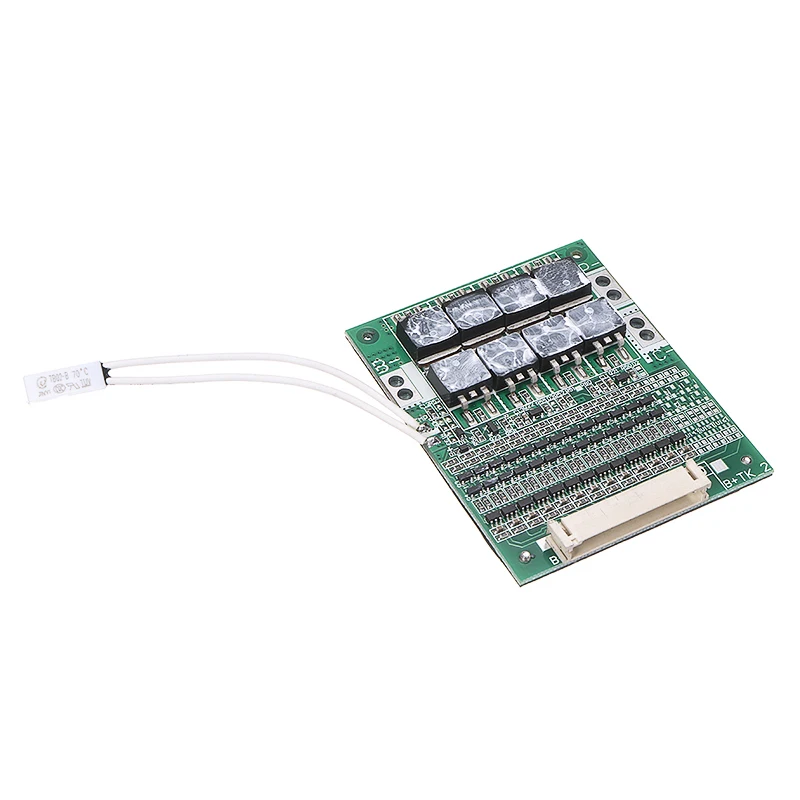

13S 48V 50A 18650 Li-ion Lithium Battery Pack BMS Protection PCB Balance Integrated Circuits Board for Electric Assistant Car

13S 48V 50A 18650 Li-ion Lithium Battery Pack BMS Protection PCB Balance Integrated Circuits Board for Electric Assistant Car

Prix régulier $22.99 Prix réduit $38.99 Prix unitaire par
Taxes incluses. Frais de port calculés à la caisse.

Features:

  • It is suitable for 3.7V ternary, lithium cobaltate, lithium manganese oxide battery.

  • Applicable power and voltage: 48V, less than 2500W

  • The overcharge protection

  • Over discharge protection

  • Over current protection

  • Output short circuit protection

  • Overtemperature protection (maximum discharge temperature: 75 degrees,

  • minimum charging temperature: -7 degrees)


Specification:

  • 100% brand new with high quality

  • Size: 70mm/2.76"×56mm/2.20"

  • Working current: 50A (max)

  • Continuous working current: 40A (max)

  • Over-discharge protect voltage: 2.6V

  • Over-charge protect voltage: 4.25V

  • Charge current: 40A

  • Balance charge voltage: 4.2V

  • Application: electric car, twist car, electrician bicycle, scooter, inverter and so on.


Package Included:

  • 1 x Li-ion Lithium Battery Charge Board


Note:

  • The colors may be a little difference for the different monitor display.

  • Please check as much as possible to make sure the item is the one that you need.

  • Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)


Certification: None
Origin: CN(Origin)
Weight: 0.065KG
Size: 70mm/2.76"56mm
Model Number: lithium battery bms
Nominal Capacity: 50A
Application: Other
Type: Li-Ion
Voltage: 4.2v
