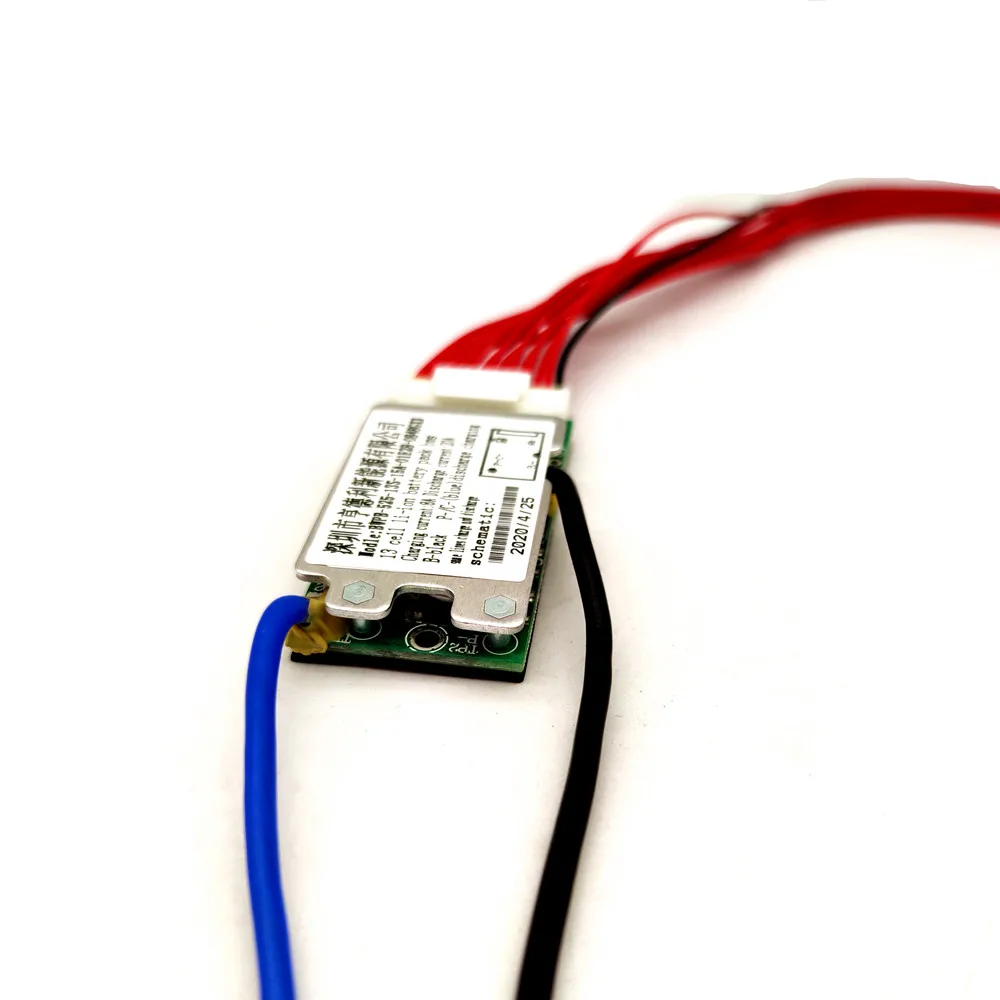

High Quality 13s 20a Bms 48v Lithium Battery Charging Voltage 54.6v Pcm for E Bike HENGCHANG Dropshipping

High Quality 13s 20a Bms 48v Lithium Battery Charging Voltage 54.6v Pcm for E Bike HENGCHANG Dropshipping

Precio habitual $28.99 Precio de oferta $51.99 Precio unitario por
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pagos.

Application and features:

A, applicable to series 13 series, 15AH and the following lithium/cobalt acid lithium/lithium cobalt/lithium/lithium polymer/triples battery pack

B, perfect overcharge protection, overdischarge protection, discharge overcurrent protection and discharge short circuit protection

C, the peripheral protection adopts the aluminum profile heat sink, which has anti-vibration, anti-fall, anti-impact and increasing heat dissipation and strength function

D, the main control IC adopts the special battery protection with high integration degree, which has reliable and stable function, low self-loss and ESD

E, has broken line protection function



Wiring instructions

Main line: 1, B-: the negative pole of the battery pack (black UL3135 14AWG 150MM+-5)

2.C-/P-: discharge and charging UL3135 14AWG 150MM+-5)

Wiring instructions:

power cable

B-:Connect to battery negative  (Black)

P-:Connect to negative of discharge and charger port

Voltage monitoring cable red

cable type:UL1007   22AWG   L=300±5mm

B-(Black),B13+(Red)

B-(GND)/B1/B2/B3/B4/B5/B6/B7/B8/B9/B10/B11/B12/B13(B+)

Remarks:

Please connect B- line firstly, and then connect voltage monitoring wiring harness. The last step is to connect charge and discharge lines. If you want to remove them, the order should be reversed. Please pay attention to the connection order, or it will damage the component.


Origin: CN(Origin)
Size: 60*32*12mm
Type: Li-Ion
Voltage: 54.6v
Over current protection: 20a
Working current: 15a
Charging current: 1-8a
Charging voltage: 54.6v
