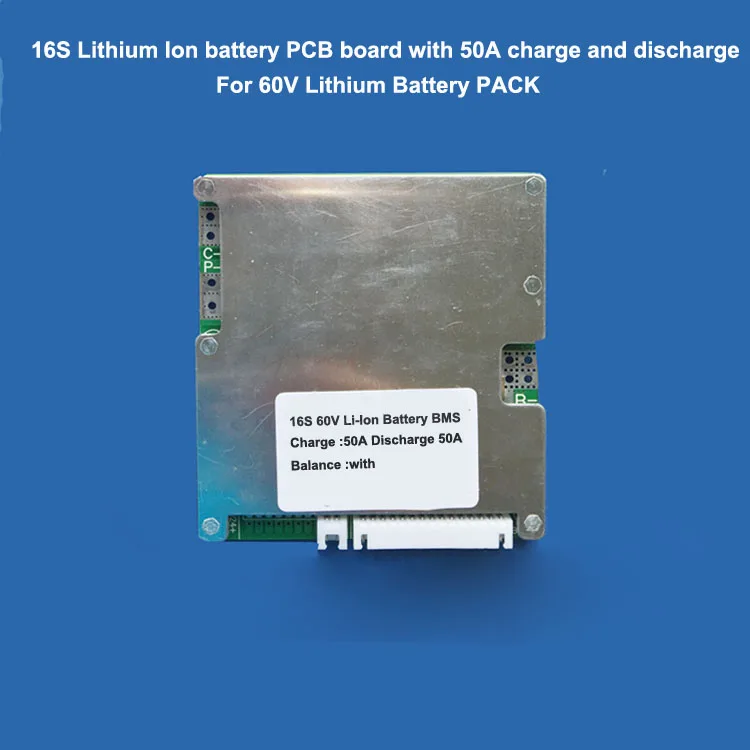

16S LI ion 60V Battery PCB and 48V Lifepo4 BMS with 20A to 50A constant charge and discharge current for 58.4V 16S protection

16S LI ion 60V Battery PCB and 48V Lifepo4 BMS with 20A to 50A constant charge and discharge current for 58.4V 16S protection

Precio habitual $42.99 Precio de oferta $93.99 Precio unitario por
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pagos.
Application
 Application :This is The BMS for 16 series 60V  lithium battery pack( LiMn2o4 ,NCM,Lico2 battery ) or 16S Lifepo4
battery pack  with 30A to  50A constant charge and discharge current ,
 Function :This BMS has such basic functions : over-charge protection ,over-dicharge protection, over-current protection ,
      short-circuit protection ,temperature detecting protection ,auotmatically voltage balance function .
 Advantages :This BMS was build with high end electronic components (High End IC and MOSFET ) ,simple structure
   design will let it have more stable quality working performance , Flexible application (full set of protection measures let it
works well without any infulence fromexternal unexpected accidents.
Specification reference
4

5


6050b
622
634

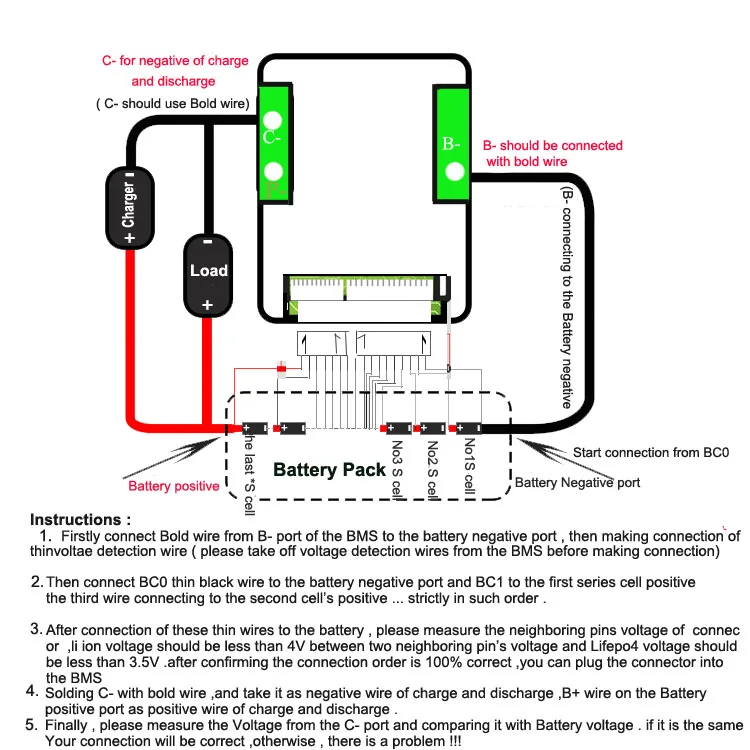

Connnection Diagram

Connection module


Origin: CN(Origin)
Condition: New
Type: Voltage Regulator
Model Number: HP24S-16s
Application: 3.7V or 3.2V Battery
Operating Temperature: 25
Supply Voltage: 67.2V or 58.4V
Dissipation Power: less than 35uA
is_customized: Yes
Item: 16S LI ion or Lifepo4 Battery PCB board
Constant discharge current: 20A ,30A or 50A
Size: 95*87*10mm
Charge and discharge port: Charge and discharge port will be the same
Application: 16S LiMn2o4 ,Lico2 ,NCM battery pack
Balance function: with continuous balance function
Full charge voltage: 67.2V or 58.4V
