4S 18650 protection circuit Module 100A 12V BMS For lifepo4 balance porta pilas
Normaler Preis $11.99 Sonderpreis
inkl. MwSt. zzgl. Versandkosten
Product Description :

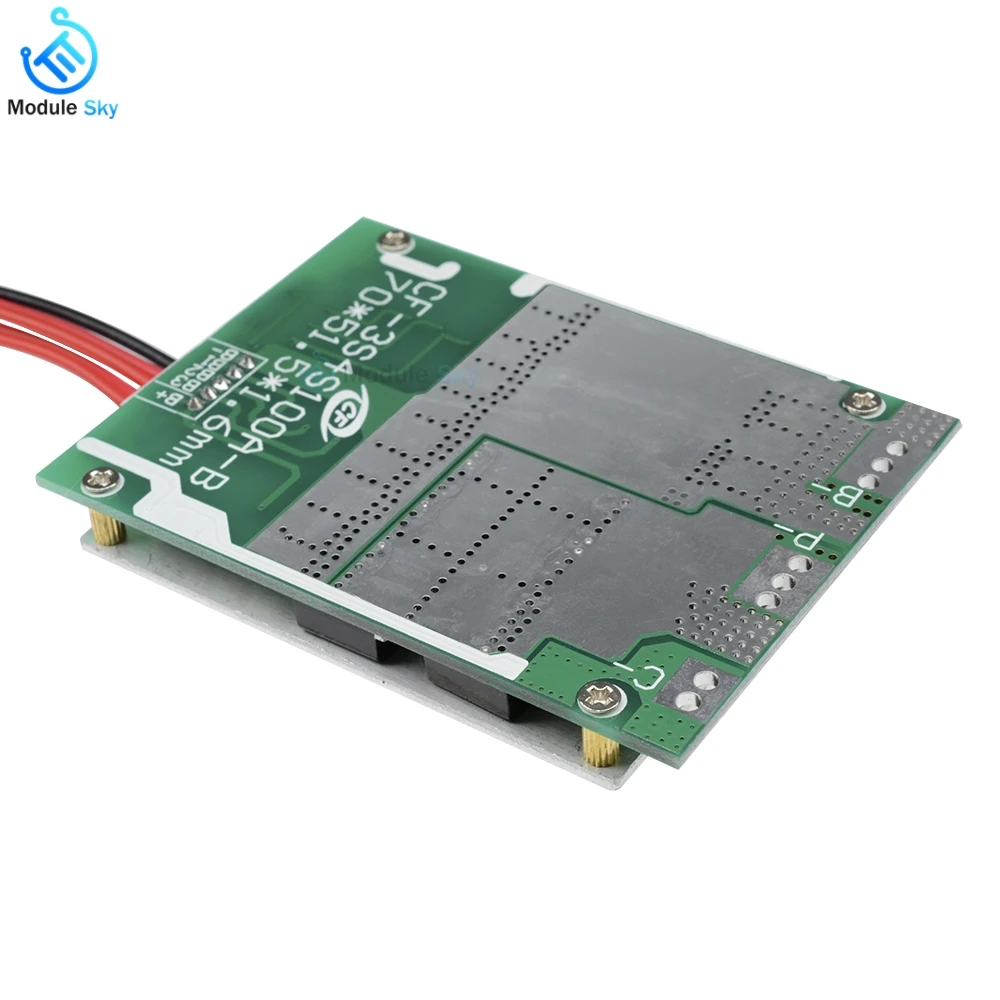

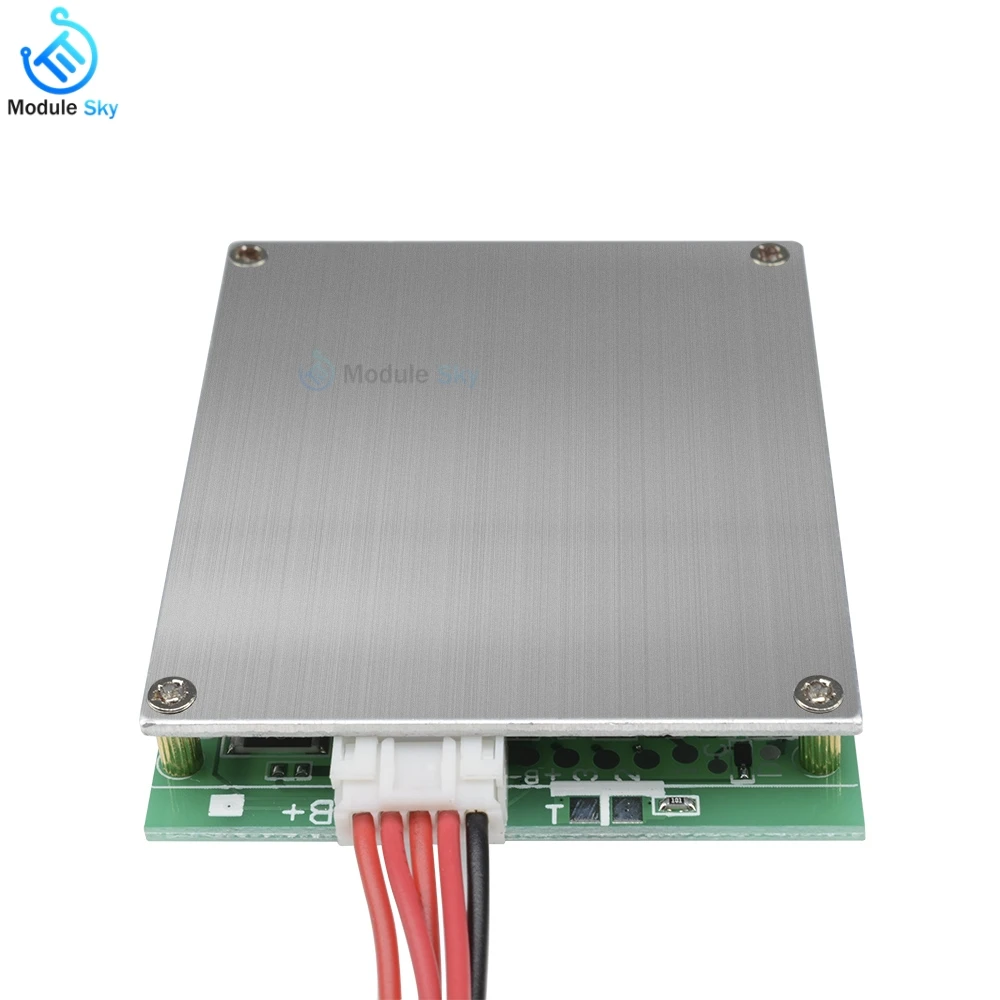

bms 4S battery charge protection Balancer PCB Board 18650 protection circuit Module 100A 12V BMS For lifepo4 balance porta pilas
-10 high power, low resistance MOS, silicone heat, and heat sink on the MOS tube.
-100A high current outflow, shunt charge equalization circuit, correspondingly fast.
- The positive electrode of the aluminum sheet dissipates heat, when the switch MOS tube discharges quickly and causes the aluminum plate to heat up,
Fully guarantee the discharge performance of the product, thoroughly heat and extend the life of the product.
- Battery protection board, special equipment detection, protects the battery on each chip from charge and discharge.
Note: Some errors may occur due to manual measurements.
1 LiFePo4 battery protection board
Name: LiFePo4 battery protection board
Model Number: 579736
Color: as picture
Continuous working current: less than 100A
Charging current: less than 10A
Electrical parameters: 4 strings 3.2V
Instantaneous discharge current: 150A
Power detection voltage: 3.60±0.05V
Power supply release voltage: 3.60±0.05V
Battery balance current: 36±5mA
Temperature range: -30 / + 80 ° C
Battery: 4 strings
Brand Name: diymore
Accessory Type: Battery Accessories
Model Number: Battery Protection Board
